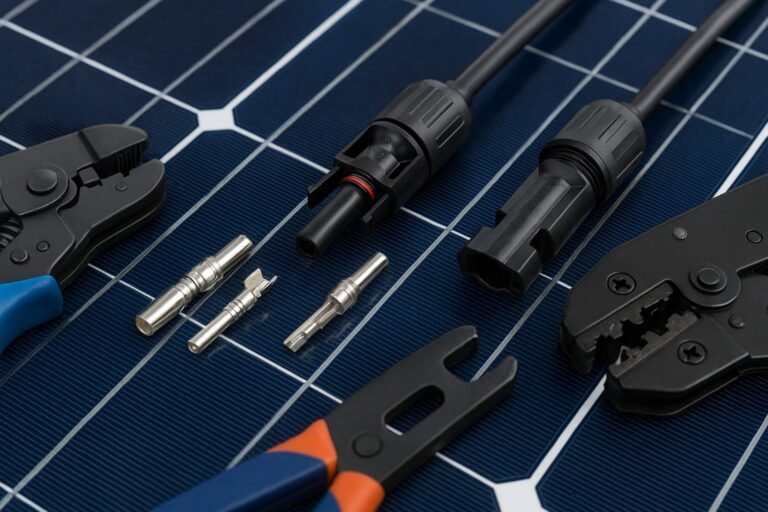

Solar Panel Connectors Explained: Types, Uses & Expert Installation Tips

When people think about solar energy, they often picture shining panels on rooftops or large solar farms stretching into the horizon. But behind every efficient solar system lies a small, often overlooked component that keeps everything safely connected — the solar panel connector.

These tiny parts may not look impressive, yet they play a critical role in safety, efficiency, and long-term performance. A faulty or mismatched connector can cause energy loss, overheating, or even system failure. In simple terms, solar panel connectors are the lifelines of the photovoltaic (PV) system, making sure that the electricity generated by each panel travels smoothly to the inverter and eventually to your home or grid.

In a typical PV setup, connectors serve as secure electrical joints that link multiple panels, extension cables, or devices together. Unlike old-fashioned wire splices, modern solar panel electrical connectors are designed for weather resistance, waterproof sealing, and consistent conductivity — all vital in outdoor conditions where temperature, dust, and moisture can cause trouble.

You’ll often come across terms like MC4 connectors, Solarlok, or Amphenol H4, which are popular connector types used in today’s installations. Each has its design, locking mechanism, and electrical rating, but all share a single purpose — keeping your solar array performing at its best while ensuring complete safety.

In this guide, you’ll learn everything you need to know about solar panel connectors MC4 and other types — including how they work, how to connect them properly, common mistakes to avoid, expert maintenance tips, and new innovations shaping the future of solar energy.

Whether you’re a homeowner installing your first system, an electrician handling large-scale projects, or simply curious about how solar power works, this article will help you understand these small yet powerful components that make big systems reliable.

Fundamentals Of Solar Panel Connectors

What Is A Solar Panel Connector?

A solar panel connector is a small but powerful component that joins one solar panel to another or links a panel to the inverter or charge controller. In every photovoltaic (PV) system, these connectors ensure that electricity flows smoothly and safely through the cables without any loose or exposed wiring.

Think of them as the “electrical handshake” between panels — they allow quick connection and disconnection without the need for complicated wiring or soldering. A good connector maintains low electrical resistance, tight sealing, and strong mechanical grip, which are all critical for efficient energy transfer.

In short, a solar panel connector is not just a plug; it’s a precision-engineered part designed to handle high voltage, strong sunlight, moisture, and dust — all the harsh outdoor conditions where solar panels operate daily.

Why Use A Connector Instead Of Bare Wire Joints?

In the early days of solar energy, some installers used to connect wires manually with tapes or screw terminals. However, that approach often led to poor sealing, corrosion, and frequent power loss. Modern solar panel electrical connectors solve all these problems.

Here’s why professional installers use connectors instead of bare wire joints:

• Safety – Connectors reduce the risk of electric shocks and short circuits.
• Durability – They’re made to resist rain, UV light, and temperature swings.
• Standardization – Most solar equipment today uses the same connector type (like MC4), making it easier to add or replace panels.
• Speed – Connectors make installation and maintenance faster without needing tools or soldering.

In short, connectors bring both efficiency and reliability to the system. A properly connected system can run safely for over 25 years without major issues.

Connector Vs Junction Box Vs Terminal Block — What’s The Difference?

People sometimes confuse connectors, junction boxes, and terminal blocks, but they serve different purposes in a solar setup.

• A connector is a plug-and-socket component used to join two cables or panels directly.
• A junction box is the sealed box attached to the back of each panel — it’s where the internal cell wiring meets the external cables and connectors.
• A terminal block is typically used inside electrical panels or combiner boxes for grouping and organizing multiple wire connections.

In simple terms, the connector is what links panels together, while the junction box is what holds the internal wiring, and the terminal block organizes connections inside larger electrical enclosures.

Why Faulty Connectors Are A Big Problem

A single bad connector can reduce your solar output or even create a safety hazard. Faulty connections cause voltage drops, arcing, and sometimes melting of insulation due to excessive heat. According to multiple solar maintenance reports, connector-related issues are among the top causes of system failures in residential and commercial solar installations.

That’s why choosing certified, high-quality connectors and installing them correctly is so important. Spending a few extra dollars on good connectors can prevent costly energy losses and maintenance problems later.

Types Of Solar Panel Connectors (And Their Use Cases)

Not all solar connectors are the same. While most modern systems rely on MC4 connectors, there are several types — each with different designs, voltage ratings, and compatibility features. Knowing the differences helps ensure your solar setup is both efficient and safe.

MC4 Connectors — The Modern Standard

The MC4 connector (short for Multi-Contact, 4mm pin) is the most widely used solar panel connector today. It was designed by the Swiss company Stäubli Electrical Connectors and quickly became the global standard for solar installations.

Why MC4 dominates:

• Easy plug-and-play design: Connectors simply snap together with a locking mechanism that prevents accidental disconnection.
• Weatherproof & UV-resistant: Rated IP67, meaning it’s fully protected against dust and can withstand rain or temporary immersion.
• High current and voltage rating: Most MC4 connectors handle up to 30–50 amps and 1000–1500 volts, depending on the version.
• Universal compatibility: Nearly every solar panel manufacturer includes MC4 connectors by default.

You’ll often see these referred to as solar panel connectors MC4, especially in installation guides and product descriptions.

Expert Tip: Avoid mixing different MC4 brands or knockoff versions. Even if they look identical, tolerances vary, and mismatched connectors can overheat or fail over time.

MC3 Connectors — The Early Generation

Before MC4 became the standard, MC3 connectors were common in older solar systems. They have a snap-in design but lack the waterproof locking system found in MC4.

Why they’re outdated:

• No locking mechanism (easier to disconnect, less secure).
• Lower weather resistance.
• Not compliant with newer NEC safety codes.

If you’re maintaining an older solar setup and notice MC3 connectors, it’s worth considering an upgrade to MC4 for better safety and performance.

Tyco Solarlok Connectors

The Solarlok connector was developed by Tyco Electronics (now TE Connectivity) and was one of the early competitors to MC4. It uses a genderless design, meaning either side can connect to another — simplifying installation.

Pros:

• Flexible, genderless connection.
• Robust materials for outdoor use.

Cons:

• Less common today, making replacements harder to find.
• Not compatible with MC4 without special adapters.

Solarlok connectors are still found on older systems and a few industrial installations but are gradually being phased out.

Amphenol H4 Connectors

The Amphenol Helios H4 connector is another high-quality alternative to MC4, often used in large-scale or commercial solar systems. It is UL and TUV certified and designed for higher amperage handling with excellent sealing.

Highlights:

• IP68 waterproof rating (even stronger than MC4).
• Rated up to 52 amps and 1500 volts.
• Compatible with standard MC4 tools but not identical in design.

Installers often choose Amphenol H4 connectors for industrial-grade systems requiring maximum durability and current capacity.

Radox, T4, And Other Connector Variants

There are a few other connector types used regionally or in specific products:

• T4 connectors – A close alternative to MC4, used by some Canadian Solar panels.
• Radox connectors – Known for superior temperature and UV resistance.
• Anderson Powerpole connectors – Common in portable solar panels or DIY systems.
• XT60 connectors – Used for small off-grid kits, camping setups, and RV solar kits due to their compact size.

While these are less common in mainstream installations, they serve niche markets where flexibility, quick connection, or portability matters more than standardization.

Comparative Overview Of Common Connector Types

Connector Type	Voltage Rating	Current Rating	Locking System	Waterproof	Common Usage	Notes
MC4	1000–1500 V	30–50 A	Yes	IP67	Most modern solar panels	Global standard
MC3	600–1000 V	20–30 A	No	Limited	Older systems	Outdated
Solarlok	600 V	30 A	Partial	Moderate	Industrial/legacy systems	Genderless
Amphenol H4	1500 V	Up to 52 A	Yes	IP68	Commercial setups	High durability
T4	1000–1500 V	30–40 A	Yes	IP67	Some brand-specific panels	Similar to MC4
Anderson / XT60	100–600 V	10–20 A	Snap	Partial	Portable / RV systems	For mobility use

Why Understanding Connector Types Matters

Choosing the right connector ensures safety, compatibility, and long-term reliability. Using mismatched or low-quality connectors can cause:

• Overheating or melting under load.
• Power loss due to high resistance.
• System shutdowns caused by poor contact.

For consistent performance, always use certified connectors from reputable manufacturers and verify compatibility with your solar panel brand and cable size.

Selecting The Right Connector For Your System

Choosing the right solar connector isn’t just about plugging cables together — it’s about ensuring safety, reliability, and long-term performance. The wrong connector can cause voltage drops, overheating, or even fire hazards. Let’s go through the essential factors that every installer or homeowner should consider.

Key Technical Criteria To Check

Before buying solar connectors, always look at these key specifications:

• Voltage Rating: Make sure the connector can handle the maximum voltage of your solar array. For example, if your system runs at 1000 volts, the connector should be rated for at least 1000–1500 volts to provide a safety margin.
• Current Capacity (Amps): The connector must match or exceed the current rating of your panels and inverter. Overloading a connector leads to excess heat and reduced efficiency.
• Temperature Range: Look for connectors rated for extreme temperatures — typically -40°C to +90°C — since they’ll be exposed to outdoor weather.
• Contact Resistance: Lower resistance means better efficiency. High resistance can cause energy losses.
• Material Quality: The best connectors use tinned copper contacts and UV-resistant plastic to withstand sunlight and corrosion.

These technical details are usually printed on the connector body or mentioned in the manufacturer’s datasheet.

Matching Connector To Cable Gauge

One of the most common mistakes in solar installation is using a connector that doesn’t fit the cable gauge properly.

Each connector type is designed for a specific wire size — usually between 10 AWG and 12 AWG (American Wire Gauge). If the wire is too small or too large for the connector, it won’t crimp properly, leading to poor contact and potential arcing.

Pro Tip: Always use the same manufacturer’s cable and connector system whenever possible. Mixing brands may look fine but can create small differences in tolerance that affect performance.

Considering System Voltage And Layout

Your system voltage affects which connector type is ideal.

• Residential systems usually operate at 600–1000 volts, where standard MC4 connectors are perfect.
• Commercial systems can reach 1500 volts, which require high-voltage-rated MC4 or Amphenol H4 connectors.
• Off-grid or RV systems use much lower voltages (12–48 volts), so smaller connectors like Anderson or XT60 may be suitable.

Also consider the layout of your system. If you have long cable runs, use connectors and cables rated for higher voltage and current to minimize energy loss.

Safety And Certification Standards

When selecting connectors, check for certifications like:

• UL 6703 (USA)
• IEC 62852 (International)
• TÜV Rheinland Certification (Europe)

These labels ensure the connectors have passed strict tests for insulation, mechanical strength, waterproofing, and fire resistance.

Avoid low-cost, unbranded connectors that lack certification. They may look identical but often fail faster and can void your solar panel warranty.

Expert Insight: According to solar field engineers, non-certified connectors are responsible for nearly one-third of electrical faults in poorly installed systems. Saving a few dollars upfront can lead to expensive repairs later.

Cost Vs Performance — Finding The Balance

Not all systems need premium industrial-grade connectors. If you’re installing a small residential or portable solar system, a reliable MC4-compatible connector from a trusted brand (like Stäubli, Amphenol, or Phoenix Contact) will do the job perfectly.

For large commercial or utility-scale systems, it’s worth investing in connectors rated for 1500V, with IP68 protection and enhanced locking mechanisms. These will last longer under continuous high current and environmental stress.

When evaluating cost:

• Avoid the cheapest option — it often compromises material quality.
• Avoid overpaying for connectors designed for conditions your system doesn’t face (e.g., submersion-rated connectors for rooftop panels).
• Choose connectors that match your system voltage, climate, and usage frequency.

Compatibility And Standardization

Always ensure every connector in your setup is compatible and standardized. Mixing connector types (for example, one panel using MC4 and another using Amphenol H4) might seem convenient, but it increases the risk of poor contact and mechanical failure.

Follow these golden rules:

• Use connectors from the same brand and series across your array.
• Never force incompatible connectors together — even if they look similar.
• Keep spare connectors from the same batch for maintenance.

By maintaining a uniform connector system, you reduce resistance points, simplify troubleshooting, and keep your warranty intact.

Installation & Wiring Best Practices

Even the best solar connectors can fail if they’re not installed correctly. Proper wiring and connection techniques are essential for long-term safety, electrical efficiency, and warranty protection. This section will walk you through the best practices used by professional solar installers worldwide.

Planning And Layout

Before touching any tools, always plan your wiring layout carefully.
Good planning reduces voltage loss, improves safety, and keeps your system neat.

Key steps to follow:

• Map your system layout — decide how panels will be connected (series, parallel, or hybrid).
• Measure cable runs — use the shortest possible cable lengths to minimize resistance.
• Keep polarity consistent — mark positive and negative cables clearly before connecting.
• Allow for expansion — if you plan to add panels later, leave space for extra connectors.

Pro Tip: Always route cables in a way that avoids sharp bends, direct sunlight exposure where possible, and areas with standing water.

Tools And Materials You’ll Need

To ensure tight, reliable connections, always use manufacturer-recommended tools instead of improvising.

Here’s what professionals use:

• MC4 or connector crimping tool (specific to your connector type)
• Wire stripper and cutter
• Torque wrench (for precise tightening)
• Multimeter (to check continuity and voltage)
• MC4 unlock/disconnect tool (for maintenance and safety)

Using the wrong tools can cause a weak crimp, leading to high resistance and heat buildup — a common cause of connector failure.

How To Assemble A Solar Connector (Step-by-Step)

Here’s the standard process used for assembling MC4 and similar connectors:

1. Strip the wire insulation (about 7–8 mm).
2. Insert the stripped wire into the metal terminal pin.
3. Crimp the connection tightly using a proper crimping tool — never use pliers.
4. Insert the pin into the connector housing until it clicks.
5. Tighten the sealing nut to lock the connection and prevent water ingress.
6. Repeat for the other end of the cable.
7. Plug the male and female connectors together — you should hear a firm “click.”

Once connected, gently tug the cable to confirm it’s secure. Then use a multimeter to verify voltage and polarity before powering the system.

Safety Note: Never connect or disconnect solar connectors when the system is live or under load — this can cause dangerous electrical arcing.

Series, Parallel, And Hybrid Wiring Configurations

Connectors make it simple to wire panels in different configurations, depending on your voltage and current requirements.

• Series Wiring: Connects positive (+) to negative (–) from one panel to the next. This increases voltage while keeping current the same.
• Parallel Wiring: Connects all positives together and all negatives together. This increases current while keeping voltage constant.
• Hybrid Wiring: A combination of both — used in larger systems to balance current and voltage levels.

Using solar panel connector adapters and branch connectors helps create these configurations safely and efficiently.

Securing And Protecting Connections

After wiring, it’s essential to secure all connectors properly to prevent strain, wear, and exposure damage.

Best practices:

• Use cable clips or UV-resistant ties to fasten cables along mounting rails.
• Avoid hanging or loosely draped cables, which can cause stress on the connectors.
• Keep connectors off the roof surface to prevent water pooling and heat damage.
• Use conduit or cable protectors in areas with rodents or direct sunlight.

Also, make sure connectors are fully locked — a half-connected MC4 plug can generate resistance and heat, leading to dangerous hot spots.

Maintenance And Inspection Routine

Even well-installed connectors need occasional checks.
Create a simple maintenance checklist to keep your system running efficiently:

• Visual inspection: Look for cracks, discoloration, or corrosion.
• Touch test: Check for hot connectors while the system is active — warmth may signal resistance buildup.
• Voltage test: Use a multimeter to confirm full voltage across strings.
• Clean the area: Remove dust, leaves, or moisture buildup near connectors.
• Re-seal and tighten: Ensure all connections remain snug and waterproof.

Perform these inspections once or twice a year, especially before and after extreme weather seasons.

Common Installation Mistakes To Avoid

• Using non-certified or mixed-brand connectors.
• Crimping wires with ordinary pliers instead of the correct tool.
• Leaving connectors unsealed or loosely connected.
• Failing to test polarity before turning on the system.
• Running cables too close to sharp metal edges.

Avoiding these mistakes can increase your system’s lifespan by years and prevent energy losses that quietly add up over time.

Troubleshooting, Failures & Longevity Tips

Even the best solar panel connectors can develop issues over time due to weather exposure, poor installation, or normal wear and tear. Knowing how to identify, troubleshoot, and maintain these components can save you from unexpected downtime or costly repairs.

Common Failure Modes In Solar Connectors

Connectors are exposed to sunlight, rain, dust, and temperature swings year-round. These elements can cause several types of failures if not properly managed.

Here are the most common ones:

• Loose connections: Often caused by improper crimping or vibration from wind. This leads to high resistance and energy loss.
• Moisture ingress: When the waterproof seal fails, moisture enters and corrodes metal contacts.
• UV degradation: Prolonged sunlight can make plastic housings brittle or faded.
• Thermal fatigue: Constant heating and cooling expand and contract metal parts, weakening contact pressure.
• Mismatched connectors: Mixing brands that don’t fit perfectly can lead to partial contact and overheating.

Note: Connector-related faults are one of the most common causes of electrical arcing and fire in solar PV systems. Proper inspection and maintenance are crucial.

How To Diagnose A Faulty Connector

Before replacing connectors, confirm the fault through visual and electrical checks.

Visual Inspection

• Look for discoloration, burn marks, melted plastic, or cracks.
• Check for loose or misaligned pins.
• Examine the rubber seal for dryness or damage.

Electrical Testing

• Use a multimeter to measure voltage and continuity.
• Compare readings across similar connectors — a faulty one often shows voltage drops.
• In large systems, a thermal imaging camera can reveal “hot spots” caused by high resistance at faulty connections.

Touch Test (Safety First)

• While the system is operating, gently touch around the connector (wearing safety gloves).
  If it feels unusually warm or hot, it indicates resistance buildup or internal arcing — the connector should be replaced immediately.

Repair Vs Replace — What’s The Right Call?

When you find a damaged connector, decide whether to repair or replace it based on the severity of the issue.

• Minor Issues: If only the outer seal or housing is slightly worn but electrical contact is strong, you may replace just the rubber gasket.
• Moderate Issues: If the crimping is loose or one pin is damaged, re-crimp with a new terminal of the same brand and rating.
• Major Issues: If there’s visible melting, corrosion, or arcing — replace the entire connector immediately.

Expert Tip: Always keep spare certified connectors from the same batch or manufacturer. This ensures proper fit and electrical compatibility when replacements are needed.

Extending Connector Lifespan — Expert Maintenance Tips

You can significantly extend the life of your solar connectors by following these maintenance best practices:

1. Apply dielectric grease sparingly inside the terminal before assembly — it helps prevent corrosion.
2. Avoid unnecessary disconnections — each plug/unplug cycle slightly wears the contacts.
3. Secure cables firmly so there’s no tension on the connectors.
4. Inspect annually for UV damage or cracks, especially in hot climates.
5. Keep them clean — wipe off dust or mud during routine solar panel cleaning.
6. Replace gaskets or O-rings if they dry out or lose flexibility.

Regular maintenance ensures stable performance, reduced energy loss, and a lower risk of unexpected breakdowns.

Real-World Example — The Cost Of Neglect

A professional installer once discovered that a commercial solar array was producing 10% less power than expected. After inspection, technicians found several connectors discolored due to moisture intrusion and poor crimping. The faulty connectors caused heat buildup and resistance, cutting system efficiency. Once replaced, output returned to normal — proving how tiny components can impact massive systems.

Signs It’s Time To Replace Your Connectors

• Frequent inverter errors or ground fault warnings.
• Noticeable burn smell or melted insulation near connectors.
• Drop in system voltage or efficiency not caused by shading or dirty panels.
• Connectors feel hot during daytime operation.
• Physical wear — faded, cracked, or stiff housings.

When these signs appear, don’t delay replacement — continuing to run a damaged connector can pose serious fire and safety risks.

Conclusion

Solar panel connectors may look small, but they have a big job — keeping your entire solar system safe, efficient, and connected. From MC4 connectors that dominate the market to emerging smart systems with built-in sensors, these components ensure every bit of energy your panels generate reaches where it’s needed most.

By understanding connector types, selecting certified equipment, and following professional installation practices, you’re not only protecting your investment — you’re ensuring consistent performance for the next 25 years or more.

Solar power is the future, and strong, reliable solar panel electrical connectors are what keep that future shining bright.

Disclaimer:
This article is for informational purposes only and should not be considered professional electrical advice. Always consult a certified solar installer or electrician before performing any installation, wiring, or maintenance work on solar systems.
