When people think about solar power systems, they often imagine shiny panels soaking up the sun or big batteries storing energy. But there’s one crucial part that quietly does a lot of the hard work — the solar panel charge controller. It doesn’t get much attention, but without it, your battery setup could overcharge, fail early, or even become a fire hazard.
In simple terms, a solar panel charge controller is a small electronic device that sits between your solar panels and your battery. Its job is to control how much electricity flows from the panels into the battery — keeping everything balanced and safe. Think of it like a smart traffic officer, making sure electricity flows smoothly without overwhelming the system.
This guide is written for everyone — whether you’re brand new to solar or someone building your own off-grid system. We’ll walk you through the different types of charge controllers, how to choose the right size, what features matter, and even common mistakes to avoid.

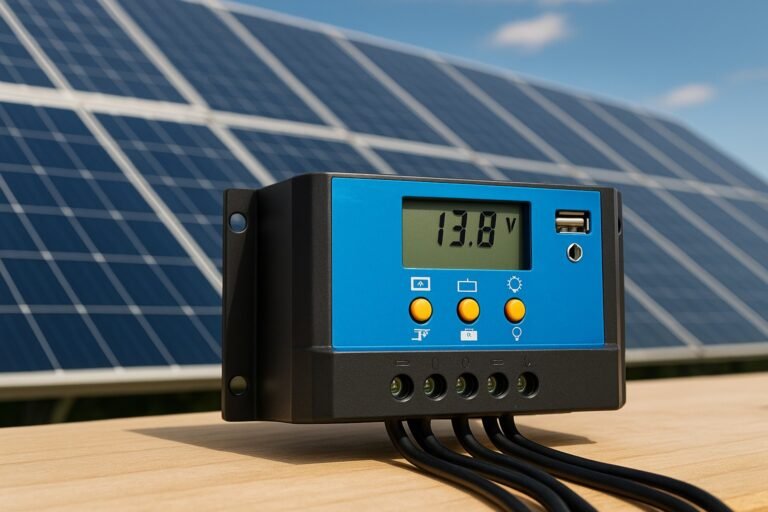

What Is A Solar Panel Charge Controller?
A solar panel charge controller is like a smart gatekeeper between your solar panels and your battery. It watches how much electricity flows in and makes sure it’s the right amount — not too much, not too little. This keeps your battery safe, healthy, and working properly over time.
Without a charge controller, the electricity from your panels could overcharge your battery. Just like overfilling a water tank can cause leaks or damage, overcharging a battery can make it heat up, swell, or even stop working altogether. A good charge controller stops charging automatically when the battery is full and only sends more power when needed.
Charge controllers also stop electricity from flowing backward from the battery to the panels at night. That backward flow might sound small, but over time, it wastes power and can hurt your system’s efficiency.
So, to put it simply:
If you’re using solar panels with batteries, you need a charge controller. It protects your battery, improves system performance, and gives your solar setup a longer life.
Many people focus only on the panels and battery, but if you ignore the charge controller, you risk wasting your investment — or worse, damaging your gear. That’s why this little box is one of the most important parts of any solar power system.
Core Types: PWM Vs MPPT (And Hybrid Variants)
Not all solar panel charge controllers work the same way. There are two main types you’ll come across: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking). Each has its own benefits, limitations, and ideal use cases. Let’s break them down in simple terms.
PWM (Pulse Width Modulation) Charge Controllers
PWM charge controllers are the older, simpler, and more affordable type. They work by directly connecting the solar panel to the battery in short pulses — like turning a switch on and off very quickly. As the battery fills up, the controller shortens the pulses to avoid overcharging.
Pros:
- Low cost
- Easy to use
- Reliable for small systems
Cons:
- Can waste a lot of power, especially if your solar panel voltage is much higher than your battery voltage
- Not ideal for cold or cloudy weather where you need to squeeze more power from your panels
Best For:
Small 12V or 24V systems, RVs, boats, and basic off-grid setups with low power needs.
MPPT (Maximum Power Point Tracking) Charge Controllers
MPPT controllers are smarter and more efficient. They constantly measure how much power your solar panel is capable of producing, and then adjust the voltage and current to get the maximum possible power from it — especially useful in colder climates or low-light conditions.
Let’s say your panel can output 18 volts, but your battery only needs 12 volts. A PWM controller will drop that extra voltage, and the power is lost. An MPPT controller, on the other hand, converts that excess voltage into extra current — meaning more power reaches your battery.
Pros:
- Up to 30% more efficient than PWM in the right conditions
- Works better in variable weather
- Great for larger systems
Cons:
- More expensive
- Slightly more complex to install and configure
Best For:
Homes, cabins, larger off-grid systems, or anywhere you need the most efficiency and power output.
Hybrid & Advanced Variants
Some newer charge controllers combine features from both types or offer multi-stage charging, battery management, or smart monitoring. Others have built-in Bluetooth, Wi-Fi, or even AI-based MPPT algorithms to optimize performance in real time.
Some hybrid controllers also include DC-DC boost functions, meaning they can step up the panel voltage if needed. These are useful when your panel’s voltage is too low to charge the battery efficiently — like in cloudy or shaded areas.
Note: These advanced models are usually more expensive and targeted at custom systems, solar professionals, or tech-savvy DIYers.
Summary Table: PWM Vs MPPT
| Feature | PWM | MPPT |
| Efficiency | Lower (~70–80%) | Higher (~95–98%) |
| Cost | Affordable | More expensive |
| Best Use Case | Small, simple systems | Large or complex setups |
| Works well in cold/cloudy? | No | Yes |
| Max panel voltage | Close to battery voltage | Can be much higher |
| Output | Direct from panel | Regulated, optimized |
Choosing between PWM and MPPT depends on your goals, your system size, and your budget. But in most modern solar setups — especially where efficiency matters — MPPT is the smarter long-term investment.
Key Specifications & Parameters — What To Look For
When buying a solar panel charge controller, it’s important to look beyond just the brand or price. You need to understand a few key specs to make sure the controller matches your system. Picking the wrong one can cause performance loss or even damage your battery.
Here’s a breakdown of the most important things to check — in plain English.
Voltage Rating (System Voltage Compatibility)
The controller must match your battery system’s voltage — usually 12V, 24V, or 48V. Some advanced controllers auto-detect the system voltage, but many need to be set manually.
Example: If your battery is 24V, don’t buy a controller that only supports 12V.
Current Rating (Amps)
This is how much current (amps) the controller can handle from your solar panels. To calculate what size you need:
Controller Amps = (Total Solar Watts ÷ Battery Voltage) × 1.25
The 1.25 is a safety margin.
Example: A 400W solar array charging a 12V battery needs:
(400 ÷ 12) × 1.25 = 41.6A
You’d need a controller rated for at least 45A.
Maximum PV Voltage (Voc Limit)
Each solar panel has an “open circuit voltage” (Voc). When you connect panels in series, these voltages add up. Your controller must be able to handle this total.
Always choose a controller that supports 25% more than your max Voc (to handle cold weather spikes).
Charging Algorithm / Battery Compatibility
Charge controllers use different charging “stages” to protect batteries:
- Bulk – fast charging
- Absorption – topping off
- Float – maintaining full charge
- Equalization – occasional deep charge (for lead-acid)
Not all controllers support all battery types. If you’re using lithium (LiFePO₄), make sure your controller allows custom settings or is made for lithium.
Temperature Compensation
Batteries charge differently in hot or cold conditions. Some controllers adjust automatically based on temperature — using either a built-in sensor or an external probe. This helps prevent overcharging or undercharging.
Efficiency (%)
MPPT controllers list a “conversion efficiency” — often above 95%. Higher is better, especially in systems where every watt matters.
Display & Monitoring
Helpful features include:
- LCD screen showing battery voltage, charge current, etc.
- Bluetooth or Wi-Fi (for phone apps)
- USB ports (to power small devices)
- Data logging (for advanced users)
Safety Features To Look For
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Reverse polarity protection (if wires are connected backward)
- Over-temperature shutoff
These features help your system stay safe and prevent accidents.
Certifications & Build Quality
Look for quality indicators like:
- UL (safety-certified in the USA)
- CE (for Europe)
- IP Ratings (e.g., IP65 = dustproof + waterproof)
- Warranty — A good controller should last 5–10 years
A charge controller may look like just a plastic box, but the features hidden inside it matter a lot. Matching the specs with your system is the first step toward a reliable and efficient solar setup.
How To Select (And Size) A Solar Panel Charge Controller
Choosing the right solar panel charge controller isn’t just about picking the biggest or most expensive model. It’s about matching your solar panel output, battery setup, and future plans — so your system runs safely and efficiently.
Here’s a simple, step-by-step way to select and size the perfect charge controller for your system.
Step-By-Step Sizing Guide
Let’s say you have:
- A solar panel array producing 400 watts
- A 12V battery bank
Use this formula:
Required Amps = (Total Panel Watts ÷ Battery Voltage) × 1.25
So:
400 ÷ 12 = 33.3 × 1.25 = 41.6A
You need at least a 45-amp charge controller.
The 1.25 factor adds a safety buffer for cloudy days, panel spikes, or high sun conditions.
Match Voltage With Your System
- If you have 12V batteries, get a controller that supports 12V.
- If you have 24V or 48V, check that the controller supports it.
- Many MPPT controllers are auto-detecting, but PWM types often need manual setting.
Always match the battery system voltage, not the solar panel voltage.
Check Maximum Input Voltage (Voc)
When wiring panels in series, their voltages add up. Your charge controller must handle the total voltage — plus a cold weather safety margin (since panels produce higher voltage when cold).
Rule of thumb: Add up panel voltages and multiply by 1.25.
Example: Two panels with 22V Voc each = 44V × 1.25 = 55V
Your controller should handle at least 55V input.
Consider Your Battery Chemistry
Not all controllers support lithium, AGM, or gel batteries. Some are designed only for lead-acid.
Look for these options:
- Preset charging profiles
- User-programmable settings
- Temperature sensor compatibility (especially for lead-acid)
If you’re using LiFePO₄, confirm the controller supports:
- Custom voltage cutoffs
- Safe float charging
- No equalization stage
Plan For System Growth
If you plan to add more panels later, consider getting a slightly larger controller now — maybe 60A instead of 40A. This saves you from having to upgrade everything later.
Balance Budget Vs Performance
PWM controllers are cheaper but waste more power, especially in large systems.
MPPT controllers are:
- More expensive upfront
- But more efficient and future-proof
- Often recover their cost through better power use
Don’t just go by price — think long term.
Common Sizing Mistakes
- Choosing a controller that’s too small for your panel array
- Ignoring cold-weather voltage spikes
- Assuming all controllers work with lithium batteries
- Forgetting to include safety margins
Real-Life Sizing Example
You want to run a small cabin with:
- Two 200W solar panels (400W total)
- One 12V 100Ah LiFePO₄ battery
Using our formula:
400 ÷ 12 = 33.3 × 1.25 = 41.6A
You’ll need an MPPT controller rated for at least 45A, with lithium settings and a Voc limit above 50V.
Getting your sizing right the first time helps your system run smoothly, prevents damage, and saves money in the long run.
Installation Best Practices & Wiring Tips
Installing a solar panel charge controller isn’t just about connecting wires — doing it the right way ensures your system is safe, efficient, and long-lasting. Whether you’re setting it up yourself or supervising a technician, these tips will help you avoid the most common mistakes.
Follow The Correct Connection Order
This is one of the most important steps:
Proper sequence:
- Connect the battery to the controller first
- Then connect the solar panel
- Then connect the load (if needed)
If you connect the panel first, your controller might not recognize the system voltage — especially with auto-detect MPPT models. Always begin with the battery.
Use The Right Wire Sizes
Using wires that are too thin can cause:
- Voltage drop
- Overheating
- Reduced performance or even fire risk
Use a wire gauge that matches your current and run length. If in doubt, go thicker. For short runs (under 10 feet at 12V, 40A), 8 AWG is common. For longer runs, use 6 AWG or thicker.
Minimize Voltage Drop
Try to keep wires short and direct between:
- Solar panels → charge controller
- Charge controller → battery bank
Long wires create voltage drop, meaning less power reaches your battery. That’s wasted energy.
Always Use Fuses Or Breakers
Install inline fuses or DC breakers on both the:
- Positive wire from solar panel to controller
- Positive wire from controller to battery
These protect your system in case of a short circuit or surge.
Recommended fuse sizes should match your controller’s amp rating.
Ground The System Properly
Grounding helps prevent damage from static, electrical faults, or nearby lightning strikes.
- Ground the metal frame of your solar panel array
- Ground the negative terminal (unless using a floating ground system)
Use a grounding rod where needed, especially in outdoor or off-grid systems.
Mount The Controller In A Cool, Dry Place
- Avoid direct sunlight or high heat
- Leave space around the controller for ventilation
- Keep it close to the batteries, but not directly on or above them (battery fumes can cause corrosion)
A wall-mounted setup in a ventilated cabinet or shaded area is ideal.
Use Weather-Resistant Parts (If Outdoors)
- Use IP65-rated or higher enclosures
- Seal all cable entries with rubber grommets
- Use UV-resistant cable ties and conduits
This is critical in dusty, rainy, or very sunny environments.
Test The Setup Before Use
Once wired, double-check:
- All polarity (positive to positive, negative to negative)
- Battery voltage readings on the controller screen
- Solar current flow in direct sunlight
- Any error lights or warning symbols
Wait 10–15 minutes to ensure charging begins normally.
Operation & Behavior Explained
Now that your solar panel charge controller is installed, what exactly does it do day-to-day? In this section, we’ll walk through how it behaves during normal operation, what happens when the battery is full, and how different conditions affect its performance.
Understanding this will help you monitor your system more confidently and spot problems early.
Charging Stages: How A Controller Works
Most good charge controllers (especially MPPT and smart PWM types) charge your battery in 3 or 4 stages:
Bulk Stage
- The battery is low, so the controller pushes in as much power as the panels can make — fast charging.
Absorption Stage
- The battery is nearly full. The controller slows down the charge to prevent overheating or damage.
Float Stage
- The battery is full. The controller sends a small trickle charge to maintain 100% without overdoing it.
Equalization Stage (Lead-acid only)
- Occasionally overcharges the battery slightly to clean sulfation on the plates. Not used with lithium batteries.
These stages help extend battery life and maximize performance.
What Happens When The Battery Is Full?
When your battery is full:
- The controller reduces or stops the current coming in from the solar panels
- In some controllers, the extra power is simply ignored or “clipped”
- In others (with load terminals), excess power may go to low-voltage DC devices like fans or lights
A good controller prevents overcharging, which can destroy a battery — especially lithium types.
Behavior During Low Sunlight Or Cloudy Days
When the sun is weak:
- PWM controllers simply pass through what they can — often inefficient
- MPPT controllers adjust voltage to extract as much energy as possible, even in poor light
That’s why MPPT is better in variable weather.
Load Terminals (If Your Controller Has One)
Some charge controllers have a “Load” output — a set of terminals where you can directly power low-voltage DC items (like LED lights or small fans).
This can be useful in RVs or off-grid cabins. The controller can automatically turn off the load if the battery voltage drops too low — protecting your battery from over-discharge.
Behavior In Cold And Hot Weather
- In cold temperatures, panel voltage increases. Your controller must handle these voltage spikes (why we size for 1.25x Voc).
- In hot weather, batteries charge differently. Good controllers adjust automatically using temperature sensors.
Some controllers also shut down if they overheat — so never mount them in direct sunlight.
Self-Diagnostics & Error Codes
Modern controllers often display error codes or blinking lights to indicate:
- Over-voltage
- Low battery
- Reverse polarity
- Over-temperature
- Short circuit
Check your controller’s manual to understand what each code means.
Real-World Example: 200W Panel + 100Ah Battery
Let’s say you have:
- A 200W solar panel
- A 12V 100Ah battery
- Sunny weather (5 hours of sun/day)
In theory:
200W ÷ 12V = ~16.6A charging current
To fully charge a 100Ah battery from empty:
100Ah ÷ 16.6A = ~6 hours (real-world: 6–7 hrs with losses)
So in one full day of sun, your controller can easily charge the battery — if it’s working properly.
Knowing how your controller behaves will help you maintain your system, troubleshoot problems, and get the most from every ray of sunshine.
Real-World Pitfalls, Mistakes & Advanced Tips (Expert Insights)
Even with the right charge controller, your system can run poorly — or fail — if it’s not set up or maintained properly. As a solar professional, I’ve seen simple mistakes cost people their entire battery bank.
Here are the most common pitfalls, along with advanced tips to help you get more value from your system.
Mistake: Underrating Your Controller
One of the most common errors is buying a controller that can’t handle the full current from your solar panels — especially if you plan to add more panels later.
Fix:
Always size your controller with at least 25% headroom, and plan for future expansion.
Mistake: Ignoring Cold Weather Voc Spikes
Solar panel voltage increases when it’s cold. If you don’t account for this, your controller might burn out on a frosty morning.
Fix:
Multiply your array’s open circuit voltage by 1.25 when checking your controller’s max input voltage.
Mistake: Mismatched Battery Chemistry
Using a lead-acid-specific controller with lithium batteries can lead to undercharging, overcharging, or premature failure.
Fix:
Make sure your controller either:
- Has a lithium preset, or
- Allows you to set custom charging voltages and cutoffs
Mistake: No Fusing Or Overcurrent Protection
Skipping fuses to save a few dollars is risky. One short circuit could cause fire or destroy your controller.
Fix:
Use proper DC fuses or breakers between your panels, controller, and battery.
Mistake: Poor Wire Sizing Or Loose Connections
Undersized wires get hot, drop voltage, and waste solar energy. Loose wires can cause arcing or random shutdowns.
Fix:
Use wire thick enough for the distance and amps. Always crimp and tighten your connectors properly.
Tip: Use A Temperature Sensor
A battery’s charge needs change with temperature. A small sensor plugged into the controller helps fine-tune charging — especially for lead-acid types.
Bonus: Some lithium BMS systems also benefit from temp-aware charge adjustments.
Tip: Use A Bluetooth Or Wi-Fi App (If Available)
Many modern controllers now connect to your phone. These apps let you:
- Monitor charge status
- Adjust voltage settings
- View historical performance
- Spot issues early
Popular brands like Victron, EPEVER, and Renogy all offer great apps for free.
Tip: Add A Boost Converter (Advanced Users)
If your panel voltage is too low to fully charge your battery (common in cloudy regions), a DC-DC boost controller can step it up.
This isn’t for beginners, but for advanced DIYers or engineers, it can improve efficiency in shaded or winter setups.
Real Case: A Costly Mistake
I once reviewed a system where the user bought a cheap 20A PWM controller for a 400W panel on a 12V battery. That’s 33+ amps, and the controller started smoking in a week.
The battery also swelled due to overcharging.
Lesson: Always size right and never compromise on safety — it’ll cost more in the long run.
By avoiding these pitfalls and applying expert insights, you’ll not only protect your investment — you’ll enjoy a more reliable and longer-lasting solar power system.
Brand Landscape, Market Trends & Innovations
To choose a reliable solar panel charge controller, knowing the major players and emerging trends can give you a big advantage. This section surveys respected brands, what’s new in 2025, and innovations to watch out for.
Leading Brands You Can Trust
When you pick a charge controller, brand reputation matters because it often reflects quality, support, firmware updates, and spare parts availability. Based on hands‑on reviews, user feedback, and market presence, here are some of the most trusted names in 2025:
| Brand | Strengths / Highlights | Things to Check |
| Victron Energy | Very strong reputation, excellent app integration, solid build quality, good warranty; reviewers regularly pick Victron as best all-around in tests. | Some models lack a screen (rely on Bluetooth/remote), may be pricier than others |
| EPEVER (EP Solar) | Good balance of features and cost; many MPPT lines, solid support for international markets | Some lower-end models may omit advanced protections or robust monitoring |
| Renogy | Popular in DIY / smaller systems; decent feature set and broad product range | Some users consider Renogy “tier‑3” in forums, especially for pushing limits repeatedly |
| Morningstar | High reliability and build quality, known for long life and robust designs | Pricing tends to be higher; their UI or modern features may lag behind “smart” rivals |
| MidNite Solar | Strong in large / industrial / high-end systems; good for off-grid or microgrid setups | Lower presence in small home markets; pricing and supply may be restrictive |
| PowMr, HQST, Rich Solar | Budget or mid-tier alternatives; popular in global markets where cost is a priority | May lack advanced protection, long warranties, or consistent firmware support |
Forum users often advise: “If you can afford it, go with tier‑1 equipment — Victron, MorningStar, etc. They are better built, better warranty, and fewer issues.”
In many DIY-solar communities, the hierarchy is loosely described:
- Tier‑1: Victron, Morningstar
- Tier‑2: EPEVER, HQST, Rich Solar
- Tier‑3: Renogy, PowMr, rebranded entries or no-name brands
This doesn’t mean Tier‑3 is always bad, but pushing them to their limits repeatedly is where problems often surface.
Regional / Local Brand Considerations
Because you may be sourcing components locally (in Pakistan, South Asia, or neighboring regions), here are some things to watch:
- Availability of parts & support: A well-known global brand may have local dealers or service centers, which matters for warranty handling and replacement parts.
- Cost vs import duty & logistics: A mid-tier local or regional brand may win if the global brand’s landed cost (after shipping, taxes) is too high.
- Climate calibration: Controllers designed or tested for high heat, dust, monsoon, or humidity are more reliable in local conditions.
If you like, I can research top Pakistani / South Asian charge controller brands (or distributors) and weave them into this section.
Innovations & Trends for 2025
The solar electronics space is evolving fast. Here are some of the trends and features getting traction in 2025 that are relevant to charge controllers:
- IoT / Smart Connectivity & Remote Monitoring
Controllers now often include Bluetooth, Wi-Fi, or RS‑485 / CAN bus interfaces to let you monitor, log, and control systems from your phone or PC. - Adaptive / AI‑based MPPT Algorithms
Rather than a fixed MPPT algorithm, some advanced controllers can learn from system performance over time and adjust tracking strategy (e.g. in partial shading or drifting panel behavior). - Higher Input Voltage Capability
To allow long-distance wiring and series strings, more controllers support high Voc inputs (up to 150V, 200V, or more), sometimes with wide-range DC-DC converters. - Bi-directional / Hybrid Functionality
Some controllers are being designed to manage both charge and discharge (or even integrate with battery management systems), blurring the line between controller and BMS. - Modular / Scalable Controllers
Systems where you can “stack” or combine controllers to expand current handling, or plug-in modules for extra features (e.g. extra sensors, expansion ports). - Better Efficiency & Thermal Design
More robust heat sinks, lower standby losses, and smarter thermal throttling help performance in hot climates. - Standardization & Interoperability
More moves toward open protocols, plug-and-play compatibility among brands, and easier integration into larger solar/battery ecosystems.
What To Watch Out For (Warnings & Red Flags)
- Controllers that claim extremely high specs at ultra‑low cost — often cut corners on protection or component quality.
- Brands with no firmware updates or no support. If a bug emerges, you want vendor backing.
- Lack of standard certifications (UL, CE, IEC) for safety and reliability.
- Poor documentation or user interface — even a strong controller is frustrating if it’s unusable.
- Warranty practices that require you to ship overseas; prefer brands with local or regional service.
How This Affects Your Choice
- If your budget allows, going for a top-tier brand often pays off in reliability, support, and fewer headaches.
- For smaller / hobby systems, mid-tier brands can offer great value — just don’t stress test them too heavily.
- As technologies advance, future-proofing features (higher voltage support, connectivity, modular upgrades) become more valuable.
Use Cases & Application Scenarios
A solar panel charge controller isn’t one-size-fits-all. Depending on your setup, location, and goals, the way you use a controller can vary a lot. Let’s look at the most common real-world scenarios and how a charge controller fits into each.
Off-Grid Cabins And Homes
For people living away from city power lines, solar panels and batteries are the main source of electricity. A charge controller ensures the battery is always charged properly, especially during seasonal changes and cloudy days.
- Ideal controller: MPPT for higher efficiency
- Key features: High current rating, lithium compatibility, reliable temperature handling
RVs, Vans, And Caravans
Mobile setups often rely on limited space and sunlight. Every watt counts. A compact, efficient charge controller makes a big difference.
- Ideal controller: MPPT or high-end PWM
- Key features: Small form factor, Bluetooth app, load output for DC lights or fans
Marine And Boats
Boats often face changing sunlight angles and salty air. Reliable charging and corrosion-resistant gear are essential.
- Ideal controller: Waterproof-rated MPPT
- Key features: Sealed design, marine-rated wiring, multi-stage charging
Remote Solar Lighting Systems
Solar-powered streetlights, traffic signs, and garden lights need simple, reliable charging — often without supervision.
- Ideal controller: Basic PWM or low-power MPPT
- Key features: Load output control, auto shut-off, weather resistance
Solar Water Pumps Or Agriculture Systems
Farms use solar for irrigation pumps, livestock waterers, and fence systems. These setups often demand bursts of high current or day-only operation.
- Ideal controller: MPPT with load scheduling
- Key features: Timer functions, high amp output, rugged build
Backup Power For Grid-Tied Homes
In areas with frequent blackouts, many homeowners add solar panels and batteries for backup power. The charge controller manages battery health when the grid is down.
- Ideal controller: MPPT with inverter communication
- Key features: Battery health management, programmable settings, safety protection
DIY Solar Projects
For hobbyists or beginners testing small systems — such as phone charging stations, camping kits, or educational projects — a simple controller gets the job done.
- Ideal controller: Budget-friendly PWM
- Key features: Easy to use, visual indicators, basic protections
Community Microgrids
In rural or developing areas, solar microgrids power multiple homes or businesses. Charge controllers in these systems must handle high loads and be easy to monitor.
- Ideal controller: Industrial MPPT with modular expandability
- Key features: Remote monitoring, stackable design, rugged build quality
No matter the use case, one thing is clear: the charge controller plays a key role in system stability, safety, and battery longevity. Understanding your application helps you choose the right one the first time.
Conclusion
A solar panel charge controller may seem like a small component, but it plays a powerful role in protecting your battery, improving system performance, and ensuring everything runs smoothly for years to come. Whether you’re running a compact RV setup, an off-grid cabin, or a full home backup system, choosing the right controller — and installing it properly — is just as important as selecting high-quality panels or batteries.
By understanding the difference between PWM and MPPT, how to size your controller, what features to prioritize, and how to avoid common mistakes, you’re already far ahead of most beginners. As solar technology evolves, the charge controller remains a central piece of the puzzle — and now, you’re well equipped to choose wisely, set up confidently, and get the most from your solar power investment.
FAQ’s:
Does A Solar Panel Need A Charge Controller?
Yes — if you’re connecting solar panels to a battery, you almost always need a charge controller. Without one, your battery could overcharge, overheat, or be damaged. The controller helps manage the charging process safely and efficiently.
What Is A Charge Controller In A Solar Panel System?
A charge controller is a device that sits between your solar panels and your battery. It controls how much electricity flows into the battery to prevent overcharging, deep discharging, or reverse current at night.
What Happens When The Battery Is Full?
When the battery reaches full charge, the controller automatically slows down or stops the charging. Some will maintain a “float” charge to keep the battery topped off without damaging it. This helps extend the life of your battery.
How Long Will A 200w Solar Panel Take To Charge A 100ah Battery?
In full sun, a 200W panel can deliver around 10–11 amps to a 12V battery. That means it can charge a 100Ah battery from empty in roughly 9–10 hours. However, in real conditions (losses, weather, battery type), expect closer to 10–12 hours.
Can I Use Any Charge Controller For Lithium Batteries?
Not all charge controllers are designed for lithium batteries. Lithium requires precise voltage cutoffs and a different charging profile. Make sure the controller has a lithium setting or allows custom voltage configuration.
What Happens At Night? Does Power Flow Back?
Without a controller, current can flow backward from your battery into the panels at night — wasting energy and possibly causing damage. A good charge controller blocks reverse current to prevent this.
Do Grid-Tied Solar Systems Need A Charge Controller?
Not always. Grid-tied systems with no batteries use an inverter to send power directly to the grid. But if you have batteries for backup, then yes — a charge controller is needed to manage battery charging.
Can I Use Multiple Charge Controllers In One System?
Yes, you can. In larger systems, people often use multiple charge controllers to handle different solar panel strings or battery banks. Just make sure they are properly sized and wired to avoid conflicts.
Can I Place The Charge Controller Far From The Battery?
It’s not recommended. The longer the wire, the more power is lost due to voltage drop. Try to place the controller close to the battery, using short, thick cables.
How Long Do Charge Controllers Last?
A good quality controller can last 5–10 years or more, especially if it’s kept cool, dry, and clean. Dust, moisture, and extreme temperatures can shorten its life.
Disclaimer:
This article is intended for informational purposes only and does not constitute professional electrical or solar installation advice. Always consult a certified solar technician or licensed electrician before making changes to your solar power system. Product specifications and standards may vary by region.
