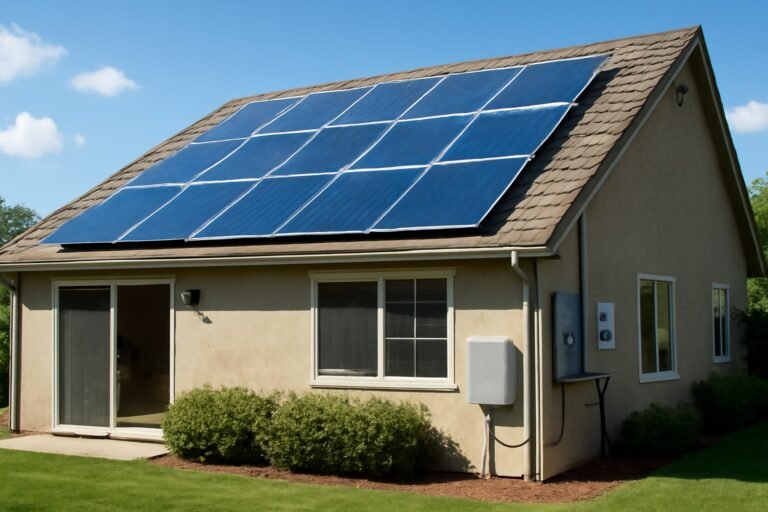

A grid tied solar system is one of the smartest ways for homeowners and businesses to lower their energy bills while helping the environment at the same time. Instead of relying only on the utility grid, this system allows you to generate electricity through solar panels during the day and automatically feed any extra power back into the grid. It’s a clean, cost-effective, and low-maintenance setup that’s becoming increasingly popular around the world. In this guide, you’ll learn exactly how a grid tied solar system works, what makes it different from hybrid or off-grid setups, and what to consider before installing one. By the end, you’ll have a clear understanding of its benefits, potential drawbacks, and expert-backed tips to make the most of your solar investment.
What Is A Grid Tied Solar System?
Definition And Key Components
A grid tied solar system, also known as an on-grid solar system, is a setup that connects your solar panels directly to your local utility grid. This means the electricity your panels generate can power your home first, and any surplus automatically flows back to the grid. In return, you earn credits through a process called net metering, which helps offset your future electricity bills.
The key components of a grid tied system include:
- Solar panels that convert sunlight into direct current (DC).
- A grid-tie inverter that transforms DC into alternating current (AC) for home use and synchronizes it with the grid.
- A bidirectional meter that tracks both the energy you consume and the energy you send back to the grid.
In simple terms, the flow works like this:
- Solar panels → Inverter → Home loads → Utility grid.
This system allows you to use renewable energy efficiently without needing large battery banks, keeping your setup affordable and easy to maintain.
How It Differs From Off-Grid And Hybrid Systems
While a grid tied solar system stays connected to the main grid, an off-grid system works entirely independently, relying on batteries to store energy for nighttime or cloudy days. A hybrid system, on the other hand, combines both approaches—it connects to the grid but also uses batteries for backup.
Here’s a quick comparison to make things clearer:
| System Type | Grid Connection | Battery Required | Best For | Key Advantage |
| Grid Tied | Yes | No | Homes with reliable grid power | Lower cost and net-metering credits |
| Off-Grid | No | Yes | Remote areas or places without grid access | Complete energy independence |
| Hybrid | Yes | Optional | Areas with frequent power cuts | Backup during outages and grid savings |
This difference mainly affects cost, reliability, and flexibility. For most homeowners, grid tied systems offer the right balance between affordability and sustainability.
Why Many Homeowners Choose Grid-Tied First
Many people choose grid tied systems as their first step into solar energy because they’re cost-effective and easy to integrate. Since no batteries are needed, the upfront investment is significantly lower compared to hybrid or off-grid systems. Installation is straightforward, and maintenance requirements are minimal. Another major advantage is net metering, where you can earn credits for the extra energy your panels send to the grid—reducing or even eliminating your monthly electricity bills. For areas with stable utility connections, this setup offers a smart and financially sensible way to go solar without complicating your system design.
How A Grid Tied Solar System Works
Key Equipment And Their Roles
A grid tied solar system runs on a few essential components that work together to generate, convert, and manage solar energy efficiently. The solar panels or photovoltaic (PV) modules capture sunlight and convert it into direct current (DC) electricity. This DC power flows into a grid-tie inverter (GTI), which transforms it into alternating current (AC) so your home appliances can use it. The inverter also synchronizes your system with the utility grid to ensure smooth energy exchange. A two-way meter measures both the electricity you consume from the grid and the excess energy your panels export. In some advanced setups, homeowners add a battery backup—creating a hybrid-like system that stores energy for power outages or night use, though this is optional in pure grid-tied configurations.
Energy Flow Explained
Here’s how energy moves through the system: during the day, your panels generate electricity. Your home uses this energy first, reducing your dependency on the grid. Any surplus electricity automatically flows back to the utility grid, and you earn credits for it through net metering. When the sun sets or during cloudy weather, you can draw power from the grid as usual. One thing to note—if the grid goes down, a standard grid-tied system temporarily shuts off to protect utility workers, a feature known as anti-islanding protection. This ensures safety but means you won’t have power unless you have a hybrid setup with battery backup.
Diagram And PDF Resources
If you prefer visual explanations, you can easily find downloadable “grid-tied solar system diagram” or “grid-tied solar system pdf” resources online. These diagrams clearly show the power flow from the panels to the inverter, through the home’s load center, and then to the utility grid. Having a visual reference helps new solar users understand how simple and interconnected the system really is, especially when evaluating installation plans or monitoring system performance.
Benefits Of Grid Tied Solar Systems
Economic Advantages
One of the biggest reasons people switch to a grid tied solar system is its economic appeal. Because these systems don’t require batteries, the initial cost is much lower than off-grid or hybrid setups. Without the expense of large battery banks, installation becomes more affordable, allowing homeowners to enjoy solar savings sooner. The payback period is typically faster since the electricity you generate directly reduces your monthly utility bills. On top of that, most utility companies offer net metering programs, which credit you for the excess power your panels send to the grid. Over time, these credits can significantly offset your costs, and in some cases, you may even see your electricity bills drop close to zero during high-production months.
Environmental & Lifestyle Advantages
Choosing a grid tied solar system is not just about saving money—it’s also about reducing your environmental impact. By producing clean, renewable energy, you help cut down on fossil fuel consumption and carbon emissions. Since grid tied systems don’t rely on complex battery setups, they also require minimal maintenance, making them a low-hassle choice for busy homeowners. This simplicity allows you to enjoy sustainable living without the stress of constant upkeep, while still contributing to a cleaner, more energy-efficient world.
Additional Expert-Backed Perks
Beyond savings and sustainability, grid tied solar systems come with several practical benefits. They are scalable, meaning you can start with a smaller system and expand later as your energy needs grow. Many modern inverters also allow easy integration with smart home systems and energy monitoring apps, helping you track your real-time power production and usage. Another overlooked advantage is the increase in property value—homes with solar systems often sell faster and at higher prices, as energy-efficient features are becoming more attractive to buyers. Altogether, these factors make grid tied setups a well-rounded and future-proof investment.
Real-Life Insight
In many residential installations I’ve seen, success often comes down to careful planning and choosing the right installer. Always work with a certified solar professional who understands your local utility regulations and can handle the required grid-tie permissions. Make sure you review all warranty documents for your panels and inverter—these are long-term assets, and documentation ensures you’re covered if something goes wrong. I’ve also noticed that homeowners who monitor their systems regularly tend to achieve better performance over time. Paying attention to these simple yet important details ensures your system remains efficient, reliable, and financially rewarding for years to come.
Common Disadvantages & Limitations
Dependence On Grid & No Automatic Backup
While a grid tied solar system offers many benefits, one key limitation is its dependence on the utility grid. If the main grid goes down, your system automatically shuts off to prevent energy from flowing back into the lines—a safety measure known as anti-islanding protection. This means that even if your panels are generating power during a blackout, your home won’t receive it unless you have a hybrid setup with a battery backup. For areas that experience frequent outages, this can be an important factor to consider before installation.
Policy And Regulatory Risks
Grid tied systems also rely on policies like net metering, which allow homeowners to earn credits for excess electricity sent to the grid. However, these regulations are not always permanent. Local utilities or governments can modify, reduce, or even remove incentives, affecting the long-term financial return of your investment. Some regions have introduced additional connection fees or service charges for grid-tied users. Because of this, it’s wise to stay updated on your local energy policies and factor in possible changes when calculating your system’s payback period.
Site-Specific Constraints
Every property is unique, and not all homes are ideal for grid tied solar systems. Factors like roof size, orientation, and shading can significantly impact your system’s efficiency. A north- or south-facing roof (depending on your hemisphere) usually yields the best results, while shaded or flat roofs may need structural adjustments or specialized mounts. You’ll also need to secure permits and approvals from your utility provider before connecting to the grid. In some regions, the compensation rate for exported energy is lower than the retail price you pay for electricity, which can affect the total savings you achieve.
Grid Tied Vs Hybrid Vs Off-Grid – Which One Should You Pick?
Off-Grid Solar System Overview
An off-grid solar system is designed for complete energy independence. It operates without any connection to the utility grid, making it ideal for remote locations where grid access is limited or unavailable. Because it doesn’t rely on an external power source, an off-grid system requires batteries to store electricity for use at night or during cloudy days. While this independence offers unmatched freedom from utility bills, it also comes with a higher upfront cost due to battery storage and additional equipment like charge controllers. Off-grid systems are best suited for people who prioritize self-sufficiency over convenience, and who are willing to manage their own power production and storage.
Hybrid Solar System Overview
A hybrid solar system combines the features of both grid-tied and off-grid setups, offering the best of both worlds. It connects to the grid but also includes a battery backup, allowing you to store energy for emergencies or nighttime use. During the day, solar power runs your home and charges the batteries. When the sun goes down, you can draw power from your battery bank, and if the stored energy runs out, the grid serves as a backup. This flexibility provides security against blackouts while still allowing you to earn credits through net metering. Although hybrid systems cost more than standard grid-tied ones, they offer better energy resilience and peace of mind for those who experience frequent power outages.
Decision-Making Framework: Which Fits You?
Choosing the right solar setup depends on your budget, location, and lifestyle goals. Here’s a simple way to decide:
Consider these factors:
- Budget: Grid-tied is the most affordable; hybrid and off-grid systems cost more due to batteries.
- Grid Reliability: If your area rarely faces outages, grid-tied is ideal. If blackouts are common, consider hybrid.
- Future Plans: Hybrid systems are flexible for future upgrades, while off-grid requires careful expansion planning.
- Lifestyle: Off-grid suits remote living or eco-conscious independence; grid-tied fits modern, connected homes.
| System Type | Grid Connection | Battery Backup | Cost Range | Ideal For | Key Advantage |
| Grid-Tied | Yes | No | Low | Homes with stable grid access | Affordable, low maintenance |
| Hybrid | Yes | Yes | Medium to High | Areas with occasional blackouts | Backup power + grid savings |
| Off-Grid | No | Yes | High | Remote or rural areas | Full independence from the grid |
Key Technical & Installation Considerations
Sizing Your System (kW, Load Calculation, Roof Area)
Before installing a grid tied solar system, it’s essential to size it correctly. Start by reviewing your electricity bills to find your average daily power usage (kWh). Divide that by your area’s average sun hours per day to estimate the system size you need. For example, if you use 20 kWh daily and your location receives about 5 hours of peak sunlight, you’ll need roughly a 4 kW system. It’s also wise to factor in system losses—usually around 10–15 percent due to inverter efficiency, wiring, and shading. Don’t forget to check your roof area; typically, each kilowatt of solar capacity requires about 100 square feet of space with good sun exposure.
Equipment Selection
Choosing quality equipment ensures performance and durability. Monocrystalline panels are more efficient and compact, while polycrystalline panels are slightly cheaper but less efficient. When it comes to inverters, string inverters are cost-effective for simple setups, micro-inverters maximize production if some panels are shaded, and hybrid inverters offer flexibility for adding batteries later. Make sure your system includes proper mounting structures, wiring, and safety disconnects that comply with electrical standards. A key technical requirement is anti-islanding protection, which allows your system to safely shut down when the grid is off, preventing accidents during maintenance or outages.
Grid-Tie System Price & Cost Drivers
The cost of a grid tied solar system depends on several components, including panels, inverter type, mounting equipment, labor, permits, and monitoring tools. For reference, a 4 kW system might range between $4,000 and $7,000, depending on location and equipment brand. High-efficiency panels and advanced micro-inverters cost more upfront but offer better long-term returns. Permitting and inspection fees can also vary by region, while professional installation ensures safety and warranty compliance. Additional smart-monitoring features, though optional, can help you track performance and identify issues early, making them a worthy investment for most homeowners.
“Grid-Tie Solar System Price” & “Grid Tied Solar System for Sale” Insights
When searching for systems online, you’ll notice wide price variations based on regional incentives, subsidies, and installer networks. Some areas offer tax credits or rebates that significantly reduce upfront costs, while local installers may bundle permits, design, and equipment into all-in-one packages. Always compare at least three quotes, focusing on quality and warranty coverage rather than just price. Keep an eye out for reputable suppliers offering certified grid tied solar systems for sale—a properly certified setup ensures safety, efficiency, and compliance with utility standards.
Installation Process & Timeline
The installation of a grid tied solar system usually follows these steps:
- Site Survey: A technician assesses your roof angle, shading, and structural integrity.
- System Design: Engineers determine layout, wiring paths, and inverter placement.
- Permits & Approvals: Utility and municipal permits are secured before installation.
- Installation: Panels, mounts, and wiring are installed, followed by inverter setup.
- Commissioning & Testing: The system is tested for safety and grid synchronization.
- Utility Inspection: The final step before your system is officially connected to the grid.
Expert Tip: Always verify your installer’s credentials and ensure they’re licensed and insured. Ask for a monitoring dashboard to track your system’s output in real time, and keep all warranty documents for panels and inverters safe for future reference.
PDF Documentation And Diagrams For Owner Manuals
Most reputable solar suppliers provide “grid tied solar system PDF” manuals that include wiring diagrams, safety instructions, and maintenance tips. These resources are invaluable for understanding how your system operates and for troubleshooting small issues later. Keep a digital and printed copy of all manuals, warranties, and installation records—these documents are essential for service calls, insurance claims, or future system upgrades.
Cost, Incentives & Return On Investment
Typical Payback Periods & Savings
Across many markets, well-designed grid-tied systems typically recoup costs in about 5–10 years, driven by daytime self-consumption plus credits for exported energy; homes with higher daytime loads and good sun exposure often land at the faster end of that range.
Incentives, Rebates, Net-Metering & Export Credits
Your ROI improves when you pair solid system design with any available tax incentives or rebates, and with transparent net-metering/export credit programs; always confirm current terms (credit rates, caps, seasonal adjustments, and billing cycle carry-overs) before signing a contract.
Hidden Costs & Ongoing Expenses
Include routine cleaning, occasional service visits, and a likely inverter replacement in years 10–15 in your financial model; also factor potential utility service fees for interconnection, bidirectional meters, or monthly fixed charges that can slightly dilute bill savings.
Price Trends & Future Outlook
Long-term trends show continued declines in panel and inverter costs and steady gains in reliability and monitoring features, making grid-tied systems increasingly attractive; however, keep a watchful eye on policy changes (net-metering revisions, fixed charges, or export rate adjustments) since these can meaningfully impact payback timing and lifetime returns.
Conclusion
Adopting a grid tied solar system is one of the most practical and rewarding ways to take control of your energy costs while contributing to a cleaner environment. By connecting your solar panels directly to the utility grid, you can generate your own electricity, reduce monthly bills, and even earn credits for the surplus energy you send back. This system’s simplicity—no batteries, lower upfront costs, and minimal maintenance—makes it an attractive option for homeowners who want reliable, sustainable energy without the complexity of off-grid setups. Beyond the financial benefits, going solar also helps reduce your carbon footprint and supports a more sustainable energy future for your community.
Before making the switch, take a moment to assess your energy needs, roof conditions, and local net-metering policies. Use the decision-making framework outlined in this guide to choose the setup that best fits your budget and lifestyle. With professional installation, periodic maintenance, and awareness of local incentives, a grid tied solar system can deliver dependable performance for decades. It’s not just an investment in your home—it’s a step toward energy independence and a brighter, more sustainable tomorrow.
FAQ’s:
What Is A Grid Tie Solar System?
A grid tie solar system, also known as an on-grid system, connects your solar panels directly to the main utility grid. It allows you to power your home using solar energy during the day and send excess electricity back to the grid for credits through net metering. When solar production is low, you can draw energy from the grid as usual.
What Are The Disadvantages Of A Grid Tied Solar System?
The main drawback is that it doesn’t provide power during grid outages because of safety features like anti-islanding protection. Additionally, changes in government policies, net-metering rules, or utility service fees can affect long-term financial returns. These risks make it important to stay informed about local regulations.
Is Grid-Tied Solar Worth It?
Yes, in most cases it’s a worthwhile investment—especially if your grid is reliable and your area offers net-metering or solar incentives. The system has a relatively quick payback period, low maintenance needs, and can significantly reduce or even eliminate monthly electricity costs over time.
What Is The Difference Between Grid-Tied And Off-Grid Solar Panels?
Both systems use solar panels to generate electricity, but their configurations differ. Grid-tied systems are connected to the main utility grid and don’t require batteries, while off-grid systems are fully independent and rely on batteries to store power for night or cloudy days. Grid-tied setups are more cost-effective, whereas off-grid ones offer complete energy independence.
